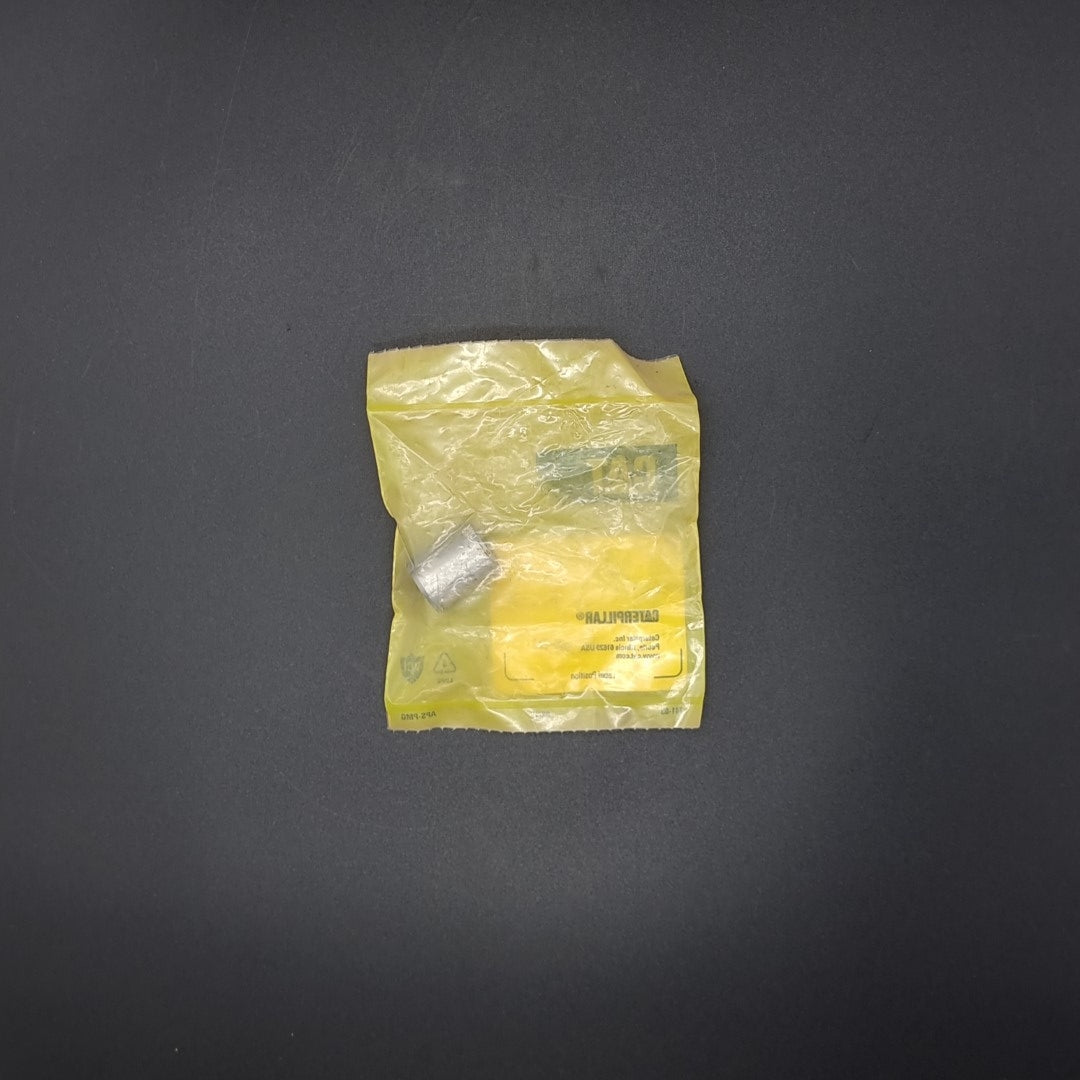

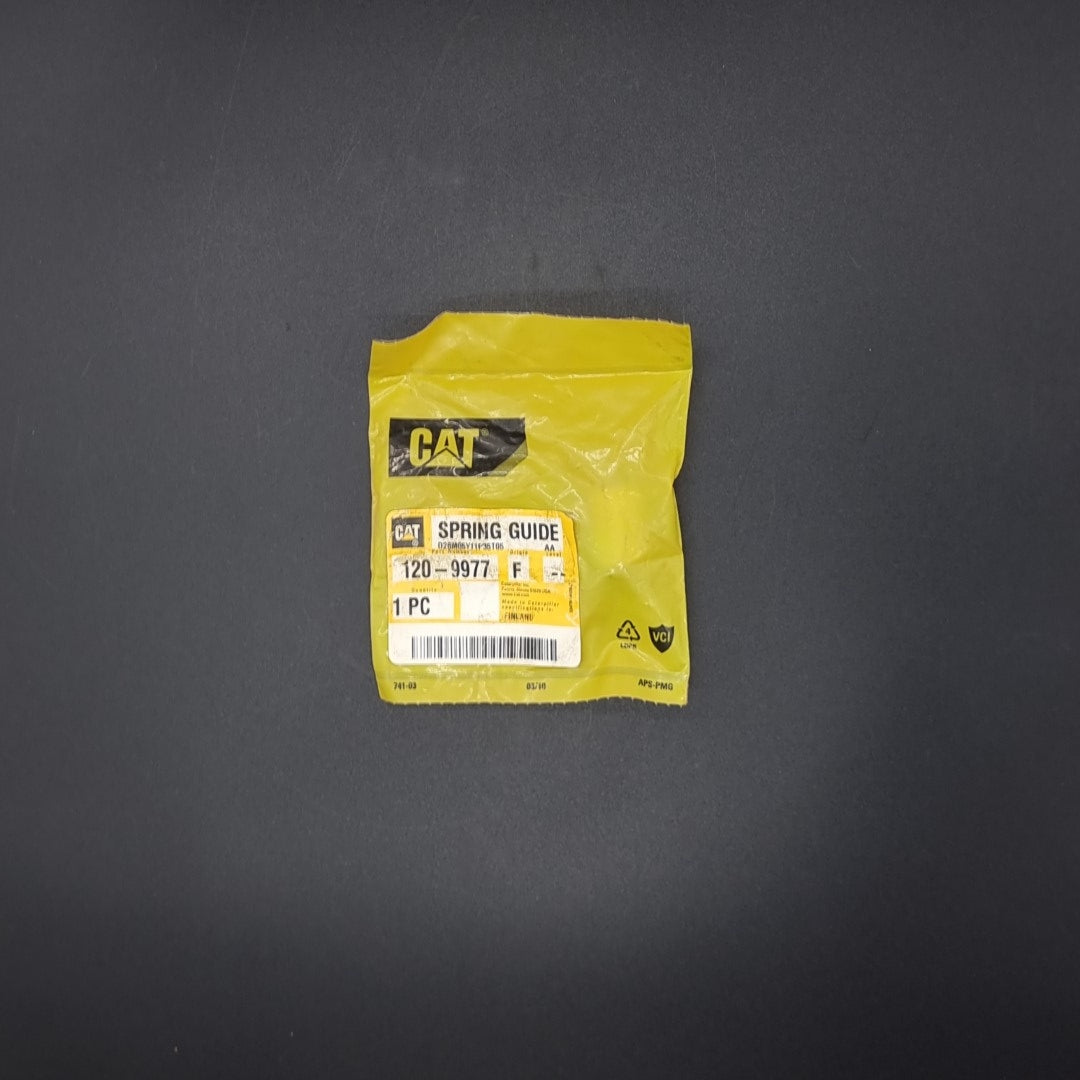

The Spring Guide helps to control the operation of the hydraulic hammer by providing stability and guiding the motion of the hammer's components. It is a cylindrical or tubular component with a precise inner diameter to accommodate the spring and allow smooth movement. The spring guide is securely mounted within the hydraulic hammerhead, often at the base of the hammer where it interfaces with the striking mechanism.Attributes: Ensures stability during operation Prevents the spring from escaping the spring guide while accommodating its compression and expansion Ensures that the spring operates within a controlled space, enabling efficient energy transfer during the hammer's operationApplications:The Spring Guide is used in the hydraulic hammer head to absorb hydraulic pressure and store energy, while the retainer pin and split pin securely hold the components together. When released, the stored energy in the spring is rapidly transferred to the hammer's striking mechanism, producing the necessary impact force for breaking or drilling operations.
